Refractive Index Detector for high performance liquid chromatography
RI-500series

概要

For the detection of samples that are not UV absorption!

Available in 3 different configurations!

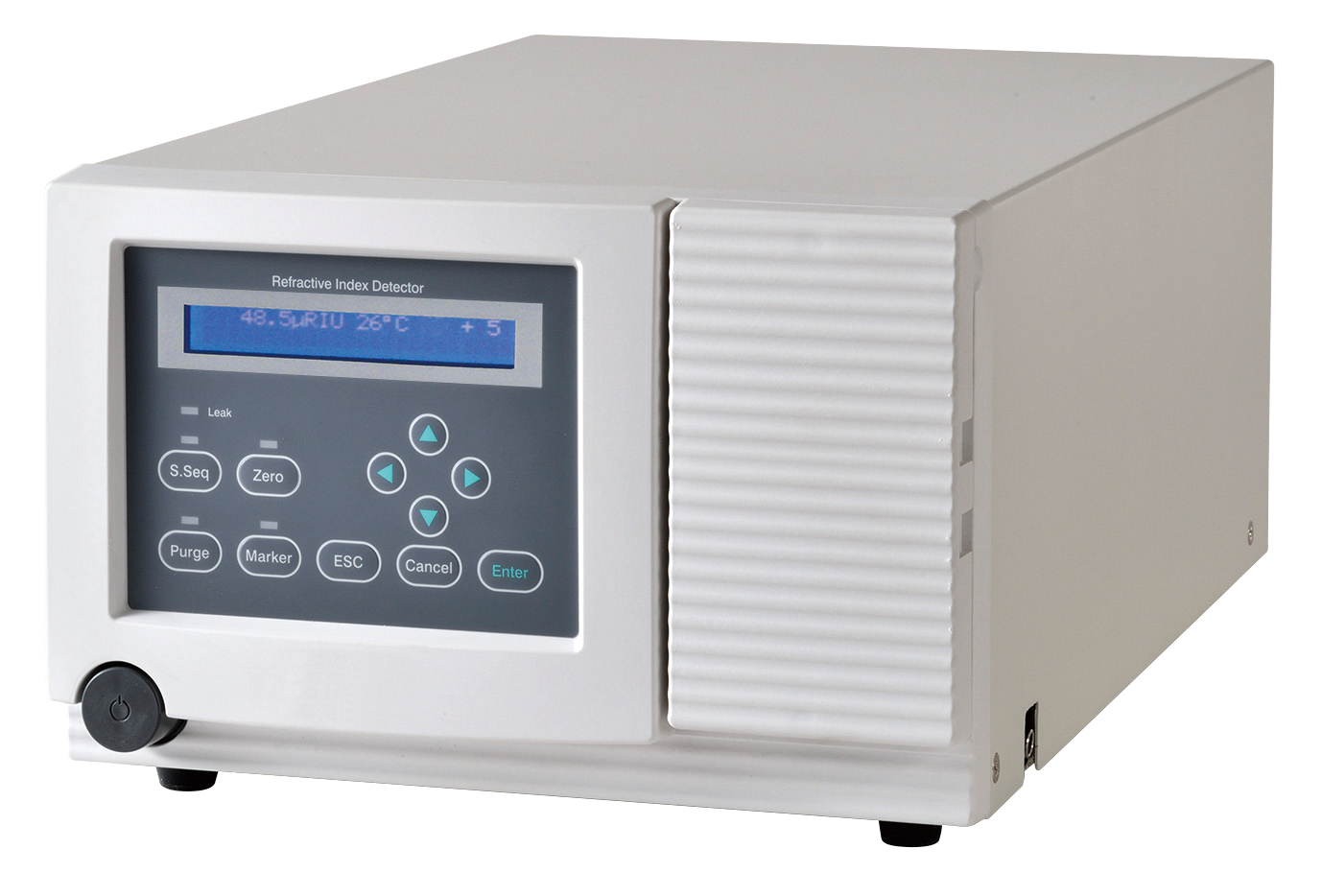

RI-500series

Features

  • Improved double temperature control system shortens the required warm-up time and provides stable background.
  • A relief valve is installed in order to protect the solenoid valve.
  • The leak sensor automatically stops the pump in case of solvent leakage.
  • Connectable to each company's HPLC system.

RI-501(Analysis type)

  • RI-501 can be used with conventional HPLC

Baseline stabilization is improved compared with existing products!

High reproducibility is observed on repeated measurements!

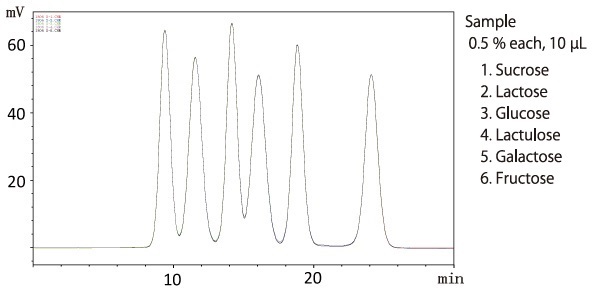

Consecutive analysis of Monosaccharides and Disaccharides using Shodex SUGAR SP0810

RI-501graph

  • Column: Shodex SUGAR SP0810
  • Eluent: H2O
  • Flow rate: 0.5 mL/min.
  • Column temp.: 80 ℃

RI-504(Semi-micro type)

  • RI-504 has small cell and internal volume, creating higher resolution and higher efficiency.
  • The eluent consumption is decreased to less than 50 % versus the conventional type.

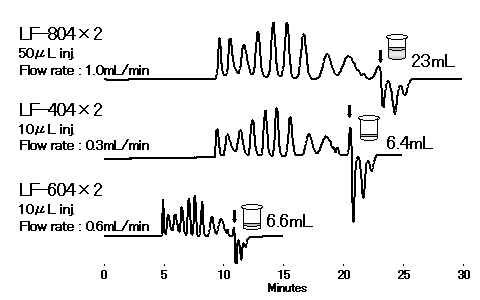

Comparison of LF-804, 404, 604

Sample : Polystyrene

RI-504graph

Rapid and high performance analysis!!

Solvent usage drastically reduced!!

  • Column :
    • Shodex GPC LF-804 x 2
    • Shodex GPC LF-404 x 2
    • Shodex GPC LF-604 x 2
  • Eluent : THF
  • Flow rate : (LF-804); 1.0 mL/min, (LF-404); 0.3 mL/min, (LF-604); 0.6 mL/min
  • Detecter : RI (LF-804; conventional, LF-404,604; small cell volume)
  • Column Temp : 40 ℃

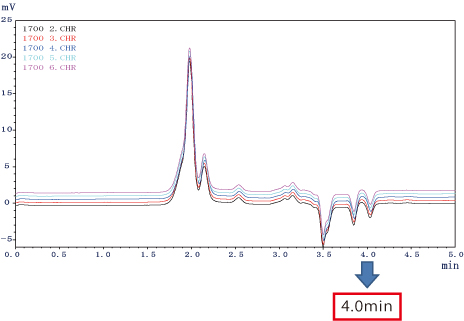

Consecutive analyses of styrene-butadiene rubber using HK-404L columns for ultra-rapid analysis

RI-504graph

Usable in ultra rapid SEC columns!!

High reproducibility!!

  • Column: Shodex GPC HK-404L×2
  • Eluent: THF
  • Flow rate: 1.0 mL/min
  • Column Temp: 40 ℃

RI-502(Semi-Preparative type)

  • RI-502 is best used for preparative work for μg-g scale.
  • Flow rate max: 50 ml/min.

Specifications

仕様
Type Analytical Semi-Preparative Semi-micro
Model RI-501 RI-502 RI-504
Measuremennt method Deflection type
Flow cell 2chamber type
Refractive Index range 1.00-1.75
Linearity range 600 μRIU 6000 μRIU 600 μRIU
Recorder output range selection (0.25-512) μRIU (2.5-5120) μRIU (0.25-512) μRIU
Integrator output range selection 128/512 μRIU 1280/5120 μRIU 128/512 μRIU
Noise 2.5 nRIU
(Water_0 mL/min, response;1.5 Sec)		 25 nRIU
(Water_0 mL/min, response;1.5 Sec)		 5 nRIU
(Water_0 mL/min, response;1.5 Sec)
Drift 0.2 μRIU/H 2 μRIU/H 0.2 μRIU/H
Response 0.1 , 0.25 , 0.5 , 1 , 1.5 , 2 , 3 , 6 sec
Auto zero Full auto zero
Auto zero range All Refractive Index Range
Integrator output (0-1) V
Recorder output (0-10) mV
External Signal Input Zero/Purge
External Signal Output READY/LEAK/ERROR
Flow cell volume 8 μL 8 μL 2.5 μL
Temperature! control system OFF, (30-55) ℃ (Double Temperature control)
Usable flowrate (0.2-3) mL/min (1-50) mL/min (0.2-1) mL/min
Maximum back pressure 50 kPa
Dead volume IN→Cell; 60 μL IN→Cell; 120 μL IN→Cell; 10 μL
Cell→OUT; 630 μL Cell→OUT; 540 μL Cell→OUT; 385 μL
Communication port LAN
Power source AC(100-240) V±10 %,50/60 Hz 150 VA
Dimensions and Weight 260 W X 420 D X 165 H(mm) 12.5 kg
  • Carefully read the attached operation manual before use.
  • The specifications are subject to change without notice.
  • These products are not intended for clinical use.
